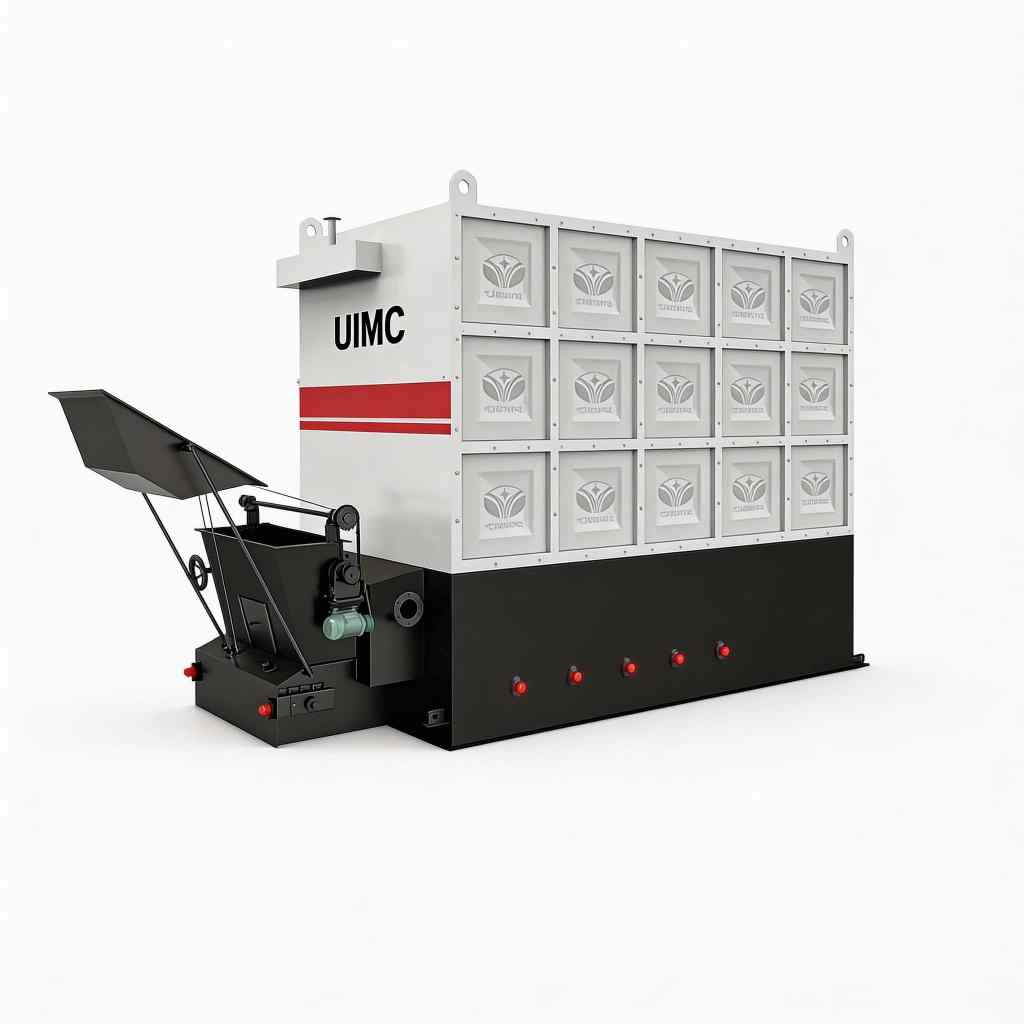

YGW/YLW BIOMASS/COAL FIRED THERMAL FLUID HEATER
- Product: YGW; YLW
- Rated Heat Power (KW; KW): 1400-12000; 1400-12000
- Rated Working Pressure (MPa): 0.8; 0.8
- Maximum Working Temperature (℃): 350; 350
- Heating Area (m^2): 105-810; 105-810
- Heat Efficiency (%): 84
- Fuel Type: Coal Biomass
- Medium Volume in Furnace (m^3): 1.2-12.8; 1.2-12.8
- Application Scenarios:
Chemical, Petrochem, Asphalt, Plastics, Rubber, Wood, Food, Pharma, Textile, Construction, Marine, Drying, Reactor, Press, Distillation.
The YGW (without chain grate) and YLW (with chain grate) are modern, energy-efficient thermal fluid heaters. Using biomass, coal, oil, or gas as fuel, thermal oil circulates via a forced liquid loop, transferring heat to process equipment before returning for reheating. Operating at up to 340°C under low pressure (≤1.0 MPa), the thermal oil remains in liquid state, ensuring safe and reliable operation.
Both series feature precise temperature control, comprehensive safety monitoring, and emission indicators below national standards, with operating costs 5–10% lower than coal-fired boilers. The sole difference is the chain grate on the YLW series. Both deliver high thermal efficiency, convenient maintenance, and policy-compliant performance.
FEATURE
- Strict medium control: Air, water, and low-volatility substances are controlled before circulation heating.
- Optimal thermal efficiency: Maintained under various loads.
- Biomass fuel: Uses wood chips and agricultural/forestry wastes, turning waste into valuable resources.
- Double sealed coils: Reduces tube surface heat load and enhances safety.
- No flue gas short-circuiting: Heating surface in turning smoke chamber prevents direct flame impingement and wall detachment.
- Proper medium flow path: Lower-to-higher elevation flow prevents gas retention and enables easy discharge.
- Compact structure: Significantly reduces boiler room footprint.
- On-site assembly: Boiler body and chain grate assembled on site, lowering transport costs and shortening installation.
| All YGW/YLW Biomass/Coal-Fired Thermal Fluid Heater Products | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1、YGW Biomass/Coal-Fired Thermal Fluid Heater | |||||||||
| Model | Rated Thermal Power | Rated Working Pressure | Rated Steam Temparature | Fuel Type | Heating Area | Medium Volume in Furnace | Max Transportation Weight | Max Transportation Dimension | |
| Unit | kW | MPa | ºC | / | m2 | m3 | kg | L*W*H mm | |
| YGW-1400T(SCI) | 1400 | 0.8 | 350 | Coal Biomass Fuel | 105 | 1.2 | 14000 | 4121*1900*2900 | |
| YGW-1800T(SCI) | 1800 | 125 | 1.5 | 20000 | 4400*2400*3000 | ||||
| YGW-2400T(SCI) | 2400 | 165 | 2.1 | 25000 | 5680*2480*3240 | ||||
| YGW-3000T(SCI) | 3000 | 190 | 2.4 | 30000 | 6000*2650*3240 | ||||
| YGW-3500T(SCI) | 3500 | 220 | 2.6 | 35000 | 6400*2770*3470 | ||||
| YGW-4200T(SCI) | 4200 | 285 | 2.8 | 40000 | 6900*2820*3470 | ||||
| YGW-4700T(SCI) | 4700 | 315 | 3 | 44000 | 7680*2985*3715 | ||||
| YGW-6000T(SCI) | 6000 | 390 | 4.8 | 48000 | 7900*3200*3475 | ||||
| YGW-7000T(SCI) | 7000 | 470 | 7 | 50000 | 8400*3300*3475 | ||||
| YGW-10000T(SCI) | 10000 | 680 | 9.5 | 70000 | 9200*3300*3550 | ||||
| YGW-12000T(SCI) | 12000 | 810 | 12.8 | 142000 | 12600*3820*3630 | ||||
| 2、YLW Biomass/Coal-Fired Thermal Fluid Heater | |||||||||
| Model | Rated Thermal Power | Rated Working Pressure | Rated Steam Temparature | Fuel Type | Heating Area | Medium Volume in Furnace | Max Transportation Weight | Max Transportation Dimension | |
| Unit | kW | MPa | ºC | / | m2 | m3 | kg | L*W*H mm | |
| YLW-1400T(SCI) | 1400 | 0.8 | 350 | Coal Biomass Fuel | 105 | 1.2 | 14000 | 4121*1900*2900 | |
| YLW-1800T(SCI) | 1800 | 125 | 1.5 | 20000 | 4400*2400*3000 | ||||
| YLW-2400T(SCI) | 2400 | 165 | 2.1 | 25000 | 5680*2480*3240 | ||||
| YLW-3000T(SCI) | 3000 | 190 | 2.4 | 30000 | 6000*2650*3240 | ||||
| YLW-3500T(SCI) | 3500 | 220 | 2.6 | 35000 | 6400*2770*3470 | ||||
| YLW-4200T(SCI) | 4200 | 285 | 2.8 | 40000 | 6900*2820*3470 | ||||
| YLW-4700T(SCI) | 4700 | 315 | 3 | 44000 | 7680*2985*3715 | ||||
| YLW-6000T(SCI) | 6000 | 390 | 4.8 | 48000 | 7900*3200*3475 | ||||
| YLW-7000T(SCI) | 7000 | 470 | 7 | 50000 | 8400*3300*3475 | ||||
| YLW-10000T(SCI) | 10000 | 680 | 9.5 | 70000 | 9200*3300*3550 | ||||
| YLW-12000T(SCI) | 12000 | 810 | 12.8 | 142000 | 12600*3820*3630 | ||||
