WNS ULTRA LOW NOx
OIL/GAS-FIRED BOILER
- Product: Steam Boiler; Pressure Bearing Hot Water Boiler; Atmospheric Pressure Hot Water Boiler
- Rated Steam/Heat Capacity (t/h; MW; MW):
0.3-20; 0.7-14; 0.7-14 - Rated Working Pressure (MPa): 1.25; 0.7-1; 0
- Heat Efficiency (%): 96-98
- Fuel Type: Natural Gas; Light Oil; Heavy Oil
- Application Scenarios:
Industrial process steam (food, textile, chemical); District heating/HVAC; Power generation; Greenhouse heating; Backup/peak load supply

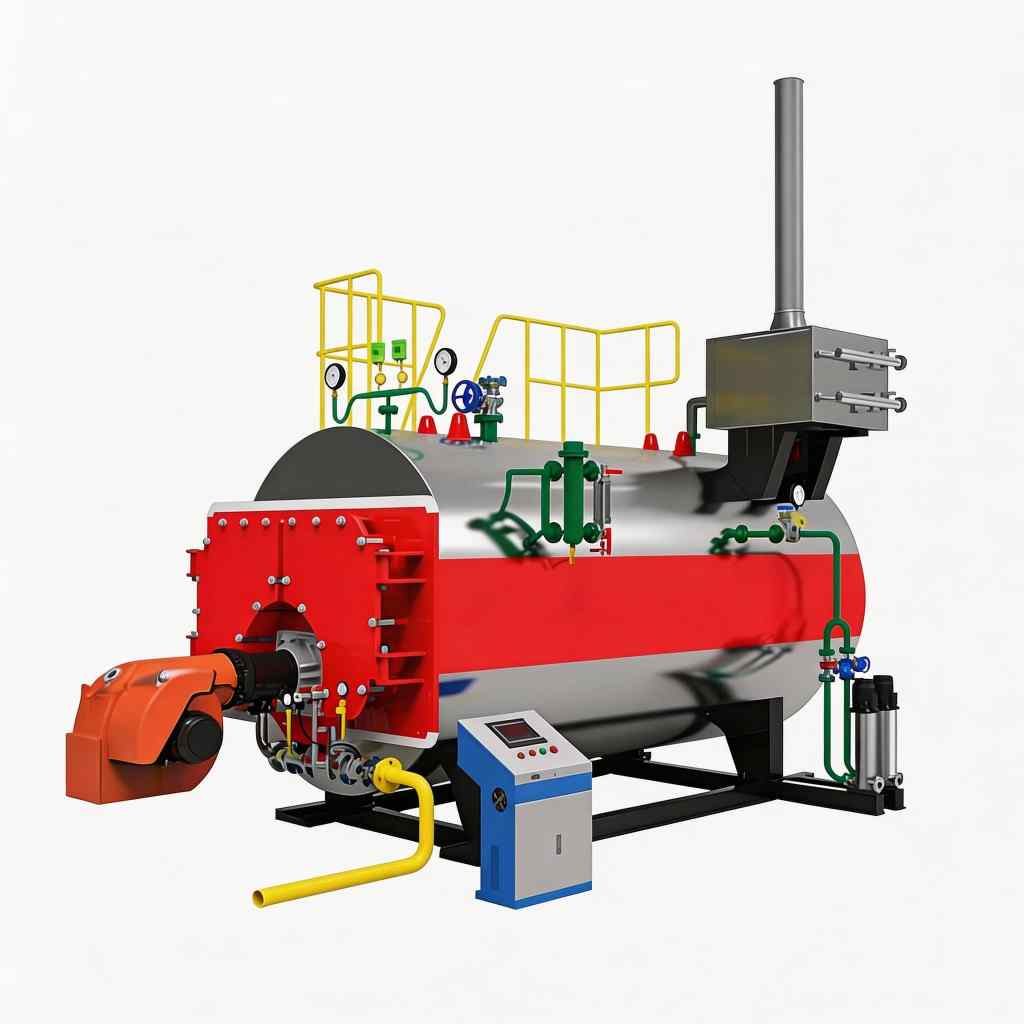

This horizontal wet-back, three-pass shell boiler integrates a body, economizer, burner, deaerator, pumps, and instrumentation. Its key feature is ultra-low nitrogen emissions (≤30 mg/m³), along with compact structure, simple operation, and high reliability. Complete automatic controls include level alarms, interlocking protection, auto-ignition, and flameout protection.
The boiler burns light oil or natural gas. Fuel is ejected from the burner, ignited electronically, and combusted in the corrugated furnace. High-temperature flue gas then passes through the second and third return smoke pipes, enters the top-mounted economizer for heat exchange, and is finally discharged to the atmosphere via the chimney.
FEATURE
- High-quality insulation: Aluminum silicate fiberboard provides good thermal insulation, light weight, and convenient transport and installation.
- Integrated door structure: Front and rear smoke boxes feature a beautiful, well-sealed design that opens easily for maintenance.
- Economizer with finned tubes: 40 spiral finned tubes (φ32×3) increase heating surface and reduce exhaust gas temperature.
- High-automation burner: Original imported burner with pre-purge, ignition, automatic fire modulation, shutdown, and flameout protection.
- Complete safety controls: Automatic control device with level alarms, low water level interlock, auto-ignition, and flameout protection.
- Maintenance access: Manhole on upper part and inspection device on lower part for easy servicing.
- Full instrumentation: Water level gauge, level alarm, pressure gauge, pressure controller, and gas/water flow meters for complete monitoring and safety.
- Ultra-low NOx emission: FGR flue gas recycling technology reduces nitrogen oxides to ≤30 mg/m³, far below national standard.
| All WNS Ultra Low NOx Oil/Gas-Fired Boiler Products | |||||||
|---|---|---|---|---|---|---|---|
| 1、 WNS Ultra Low NOx Oil/Gas-Fired Steam Boiler | |||||||
| Model | Rated Steam Capacity | Rated Working Pressure | Rated Steam Temparature | Fuel Type | Max Transportation Weight | Max Transportation Dimension | |
| Unit | ton/hour | MPa | ºC | / | kg | L*W*H mm | |
| WNS1-1.25-YQ | 1 | 1.25 | 194 | Natural Gas, Light Oil, Heavy Oil | 5500 | 3300*1800*2200 | |
| WNS2-1.25-YQ | 2 | 1.25 | 194 | 7500 | 4000*2000*2950 | ||
| WNS3-1.25-YQ | 3 | 1.25 | 194 | 8000 | 4350*2200*2600 | ||
| WNS4-1.25-YQ | 4 | 1.25 | 194 | 10000 | 4800*2300*2800 | ||
| WNS6-1.25-YQ | 6 | 1.25 | 194 | 14000 | 5400*2500*2950 | ||
| WNS8-1.25-YQ | 8 | 1.25 | 194 | 20226 | 6955*2480*2986 | ||
| WNS10-1.25-YQ | 10 | 1.25 | 194 | 21500 | 6300*2700*3200 | ||
| WNS12-1.25-YQ | 12 | 1.25 | 194 | 23000 | 6700*2700*3200 | ||
| WNS15-1.25-YQ | 15 | 1.25 | 194 | 27700 | 7365*3200*3508 | ||
| WNS20-1.25-YQ | 20 | 1.25 | 194 | 30000 | 8050*3750*3960 | ||
| 2、 WNS Ultra Low NOx Oil/Gas-Fired Pressure Bearing Hot Water Boiler | |||||||
| Model | Rated Heat Power | Rated Working Pressure | Rated Outlet/Return Temp | Fuel Type | Max Transportation Weight | Ma* Transportation Dimension | |
| Unit | MW | MPa | °C | / | kg | L*W*H mm | |
| WNS0.7-0.7/95/70-YQ | 0.7 | 0.7 | 95/70 | Natural Gas, Light Oil, Heavy Oil | 7000 | 3400*1500*1860 | |
| WNS1.4-0.7/95/70-YQ | 1.4 | 0.7 | 95/70 | 7200 | 4450*2000*2450 | ||
| WNS2.1-1.0/95/70-YQ | 2.1 | 1 | 95/70 | 7200 | 4100*2000*2450 | ||
| WNS2.8-1.0/95/70-YQ | 2.8 | 1 | 95/70 | 8000 | 5000*2050*2500 | ||
| WNS3.5-1.0/95/70-YQ | 3.5 | 1 | 95/70 | 14900 | 5300*2400*2700 | ||
| WNS4.2-1.0/95/70-YQ | 4.2 | 1 | 115/70 | 18600 | 5300*2380*2650 | ||
| WNS5.6-1.0/95/70-YQ | 5.6 | 1 | 115/70 | 21500 | 6800*2600*3000 | ||
| WNS7-1.0/95/70-YQ | 7 | 1 | 115/70 | 26000 | 6300*2700*3200 | ||
| WNS10.5-1.0/95/70-YQ | 10.5 | 1 | 115/70 | 40000 | 8700*3700*3500 | ||
| WNS14-1.0/95/70-YQ | 14 | 1 | 115/70 | 48600 | 8050*3750*3950 | ||
| 3、 CWNS Ultra Low NOx Oil/Gas-Fired Atmospheric Pressure Hot Water Boiler | |||||||
| Model | Rated Heat Power | Rated Working Pressure | Rated Outlet/Return Temp | Fuel Type | Max Transportation Weight | Max Transportation Dimension | |
| Unit | MW | MPa | °C | / | kg | L*W*H mm | |
| CWNS0.7-95/70-YQ | 0.7 | 0 | 85/60 | Natural Gas, Light Oil, Heavy Oil | 4320 | 3200*1800*2000 | |
| CWNS1.4-95/70-YQ | 1.4 | 85/60 | 6300 | 3800*1900*2200 | |||
| CWNS2.1-95/70-YQ | 2.1 | 85/60 | 8900 | 4100*2000*2400 | |||
| CWNS2.8-95/70-YQ | 2.8 | 85/60 | 11200 | 4400*2300*2600 | |||
| CWNS3.5-95/70-YQ | 3.5 | 95/70 | 13200 | 5300*2400*2700 | |||
| CWNS4.2-95/70-YQ | 4.2 | 95/70 | 14300 | 5600*2500*2800 | |||
| CWNS5.6-95/70-YQ | 5.6 | 95/70 | 19200 | 6800*2600*3000 | |||
| CWNS7-95/70-YQ | 7 | 95/70 | 23000 | 6300*2700*3200 | |||
| CWNS10.5-95/70-YQ | 10.5 | 95/70 | 35500 | 8700*3700*3500 | |||
| CWNS14-95/70-YQ | 14 | 95/70 | 42600 | 8050*3750*3950 | |||
