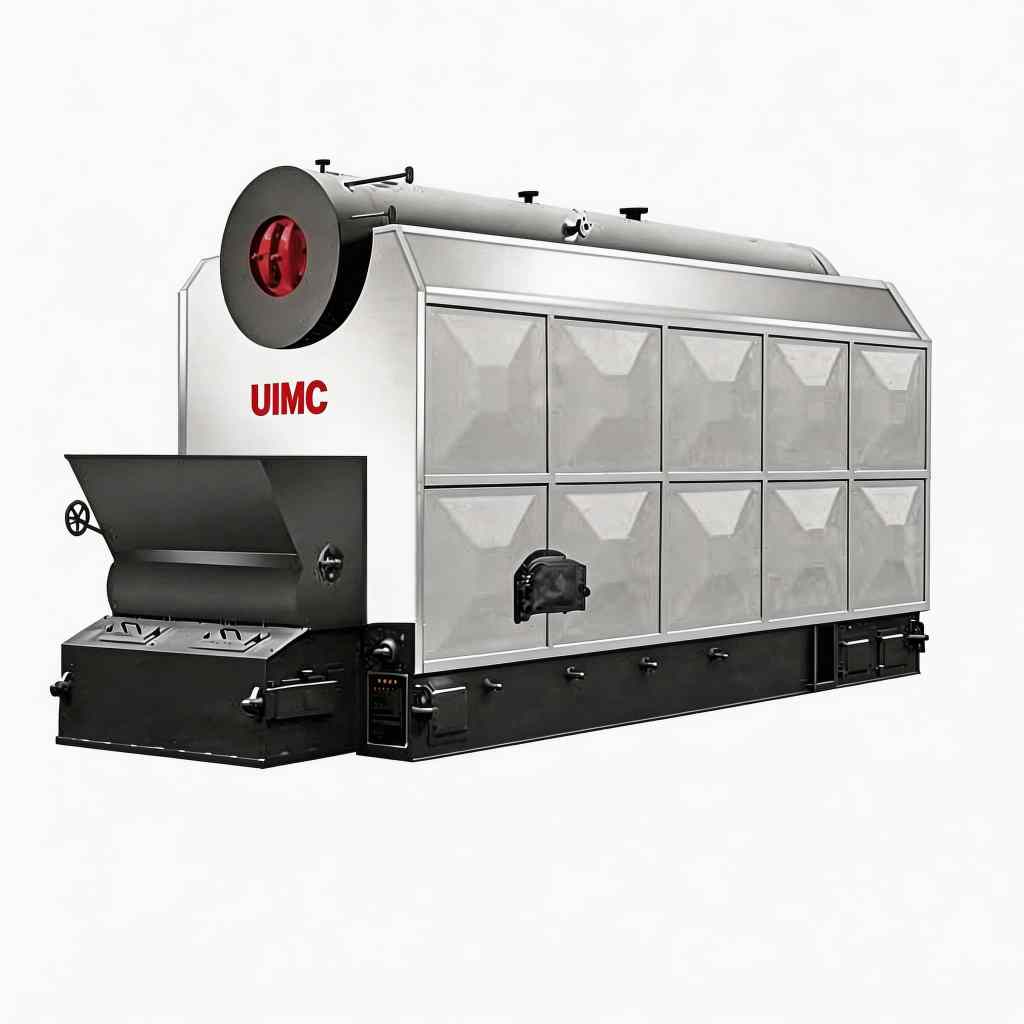

SZL BIOMASS/COAL
FIRED BOILER
- Product: Steam Boiler; Pressure Bearing Hot Water Boiler; Atmospheric Pressure Hot Water Boiler
- Rated Steam/Heat Capacity (t/h; MW; MW):
4-20; 4.2-14; 4.2-14 - Rated Working Pressure (MPa): 1.25; 1.0; 0
- Heat Efficiency (%): 84-88
- Fuel Type: Coal Biomass Fuel
- Application Scenarios:
Industrial process steam; Space heating; Power generation; Agricultural drying; Waste-to-energy; District heating
This double-drum vertical boiler features a chain grate and burns clean biomass fuel, producing no waste gas or smoke. It offers low cost, easy fuel availability, and waste recycling capability. The boiler comprises an upper body and lower combustion section. Flue gas passes through the furnace, combustion chamber, convection tube bundle, and tail flue, then is discharged via dust remover, induced draft fan, and chimney.
The combustion chamber employs a membrane wall structure on both sides, improving sealing while increasing volume and heating surface area. Front and rear walls are equipped with valved secondary air, ensuring complete combustion and improving efficiency while reducing fuel costs and waste. Additional advantages include high automation, safe and stable operation, and comprehensive protection functions, making it an ideal choice for enterprises.
FEATURE
- Convection heating surface layout: Achieves high heat transfer efficiency and stable boiler operation.
- Front and rear arches: Properly matched with large furnace arch coverage and high furnace chamber temperature.
- Double drum arrangement: Delivers high combustion efficiency and 5–10% savings in operating costs.
- CNC plasma cutting technology: Applied to front and rear smoke boxes for a neat and beautiful appearance.
- Reasonable cross-section ratio: Between falling surface and upper pipe ensures stable combustion conditions.
- Large drum volume: Features complete internal equipment.
- Safety and control functions: Includes automatic water supply adjustment, high/low water level alarm, overpressure protection, and flameout protection.
- Adjustable air volume: Manually adjustable for different combustion stages and fuels per plenum, with consistent lateral wind pressure to prevent partial burning.
| All SZL Biomass/Coal-Fired Boiler Products | |||||||
|---|---|---|---|---|---|---|---|
| 1、 SZL Biomass/Coal-Fired Steam Boiler | |||||||
| Model | Rated Steam Capacity | Rated Working Pressure | Rated Steam Temparature | Fuel Type | Max Transportation Weight | Max Transportation Dimension | |
| Unit | ton/hour | MPa | ºC | / | kg | L*W*H mm | |
| SZL4-1.25-SCII | 4 | 1.25 | 194/225 | Coal Biomass Fuel | 23000 | 6300*2300*3200 | |
| SZL6-1.25-SCII | 6 | 1.25 | 25000 | 7700*2800*3450 | |||
| SZL8-1.25-SCII | 8 | 1.25 | 27000 | 7800*3100*3520 | |||
| SZL10-1.25-SCII | 10 | 1.25 | 30000 | 7900*3300*3640 | |||
| SZL15-1.25-SCII | 15 | 1.25 | 40000 | 10000*3200*3500 | |||
| SZL20-1.25-SCII | 20 | 1.25 | 45000 | 11000*3300*3500 | |||
| 2、 SZL Biomass/Coal-Fired Pressure Bearing Hot Water Boiler | |||||||
| Model | Rated Heat Power | Rated Working Pressure | Rated Steam Temparature | Fuel Type | Max Transportation Weight | Max Transportation Dimension | |
| Unit | MW | MPa | ºC | / | kg | L*W*H mm | |
| SZL4.2-1.0/115/70-SCII | 4.2 | 1 | 115/70 | Coal Biomass Fuel | 23000 | 10200*3200*5800 | |
| SZL5.6-1.0/115/70-SCII | 5.6 | 34000 | 11700*3500*5900 | ||||
| SZL7.0-1.0/115/70-SCII | 7 | 35000 | 11900*3200*6400 | ||||
| SZL10.5-1.0/115/70-SCII | 10.5 | 39000 | 12600*4600*6700 | ||||
| SZL14-1.0/115/70-SCII | 14 | 45000 | 13800*5200*8400 | ||||
| 3、 CSZL Biomass/Coal-Fired Atmospheric Pressure Hot Water Boiler | |||||||
| Model | Rated Heat Power | Rated Working Pressure | Rated Steam Temparature | Fuel Type | Max Transportation Weight | Max Transportation Dimension | |
| Unit | MW | MPa | ºC | / | kg | L*W*H mm | |
| CSZL4.2-85/60-SCII | 4.2 | 0 | 85/60 | Coal Biomass Fuel | 23000 | 10200*3200*5800 | |
| CSZL5.6-85/60-SCII | 5.6 | 34000 | 11700*3500*5900 | ||||
| CSZL7.0-85/60-SCII | 7 | 35000 | 11900*3200*6400 | ||||
| CSZL10.5-85/60-SCII | 10.5 | 39000 | 12600*4600*6700 | ||||
| CSZL14-85/60-SCII | 14 | 45000 | 13800*5200*8400 | ||||
