LDR ELECTRIC
HEATING BOILER

  • Product:Steam Boiler; Atmospheric Pressure Hot Water Boiler
  • Rated Steam/Heat Capacity (t/h; KW):
    0.035-1; 30-2160
  • Rated Working Pressure (MPa): 0.4-0.7; 0
  • Heat Efficiency (%): 98.5
  • Fuel Type: Electricity
  • Application Scenarios:
    Industrial process steam (food, textile, chemical); District heating/HVAC; Power generation; Greenhouse heating; Backup/peak load supply

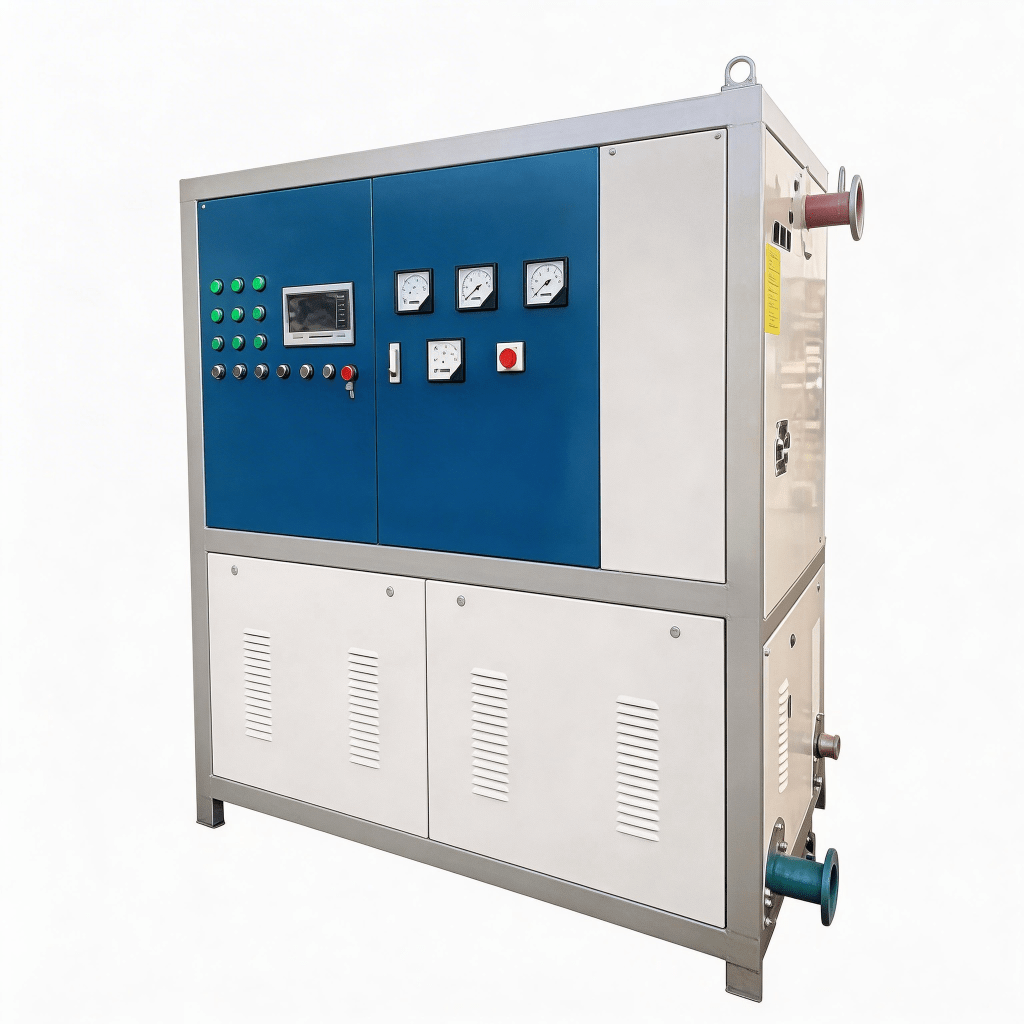

The LDR electric heating vertical boiler is heated by electricity. It is a pressure vessel equipment which converts electric heat into heat energy and then produce hot water or high temperature steam. It is mainly composed of boiler body, electric control box and control system, running quietly, noise-free and clean. Especially using electricity one of the three clean energy sources of the country to heat, which conforms to the policy requirements of environmental protection and also caters to customers psychology.

All electrical components of LDR type electric heating boiler have CE and CCC certification marks, and some parts are also adopted international brands such as Siemens, ABB etc., which greatly improves the quality and service life of the boiler and has been trusted and recognized by the majority of customers.

FEATURE

  • High-quality insulation materials: Low heat dissipation loss and reduced energy consumption.
  • Progressive load design: Protects heating elements, minimizes impact on power grid, and extends service life.
  • Integrated furnace and control: Achieves electromechanical integration and reduces space occupation.
  • Ceramic electric heating tubes: Surface load several times lower than metal tubes, extending service life and achieving up to 99% thermal efficiency.
  • Flange connection: Electric heating tubes and furnace body connected by flanges for easy disassembly, installation, and maintenance.
  • Multiple operating time periods: Several periods can be set per day according to requirements.
  • Automatic fault memory: Convenient for inspection and maintenance.
  • Digital LCD controller: Fully graphical operation interface; users can directly view operating parameters.
All LDR Electric Heating Boiler Products
1、LDR Electric Heating Steam Boiler
Model Rated Steam Capacity Designed Power Rated Steam Temparature Fuel Type Max Transportation Weight Max Transportation Dimension
Unit ton/hour kW ºC / kg L*W*H mm
LDR0.035–0.09 0.035 24 119 Electricity 60 700*350*900
LDR0.05–0.09 0.05 36 119 80 700*350*1000
LDR0.075–0.09 0.075 48 119 120 700*350*1000
LDR0.1–0.09 0.1 72 119 160 700*350*1400
LDR0.2–0.09 0.2 144 119 320 1200*700*1400
LDR0.3–0.09 0.3 216 119 320 1200*700*1400
LDR0.5–0.09 0.5 375 119 1300 3036*1400*1806
LDR0.7–0.09 0.7 513 119 1890 3636*1710*1700
LDR1.0–0.09 1 720 119 2125 3856*1710*1700
LDR1.0–0.09 1 750 119 2125 3856*1710*1700
LDR2–0.09 1 750 119 5449 4010*1810*2100
2、CLDR Electric Heating Atmospheric Pressure Hot Water Boiler
Model Designed Power Rated Working Pressure Heating Area Fuel Type Max Transportation Weight Max Transportation Dimension
Unit kW MPa m2 / kg L*W*H mm
CLDR30-85/60 30 0 250 Electricity 120 700*350*1000
CLDR45-85/60 45 400 180 700*350*1000
CLDR60-85/60 60 500 240 700*350*1400
CLDR90-85/60 90 750 360 1200*700*1400
CLDR120-85/60 120 1000 480 1200*700*1400
CLDR150-85/60 150 1250 600 1200*700*1400
CLDR180-85/60 180 1500 720 1800*900*1500
CLDR210-85/60 210 1750 840 1800*900*1500
CLDR240-85/60 240 2000 960 2400*1050*1600
CLDR360-85/60 360 3000 1440 2700*1250*1700
CLDR480-85/60 480 4000 1920 3036*1400*1806
CLDR600-85/60 600 5000 2400 3036*1400*1806
CLDR720-85/60 720 6000 2880 3636*1710*1700
CLDR900-85/60 900 7500 3600 3856*1710*1700
CLDR1080-85/60 1080 9000 4320 3856*1710*1700
CLDR1200-85/60 1200 10000 4800 3900*1810*1900
CLDR1440-85/60 1440 12500 5760 3900*1810*1900
CLDR1800-85/60 1800 15000 7200 4010*1810*2100
CLDR2160-85/60 2160 18000 8640 4010*1810*2100
